項目名稱：
行走減速機
詳情介紹

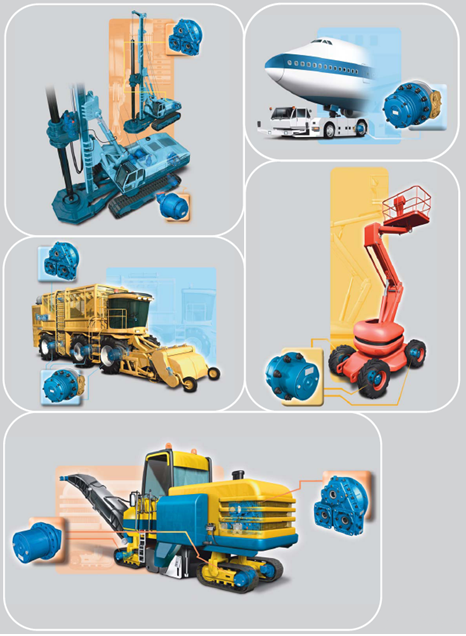

應用
?
型號 |
最大輸出扭矩T2max/Nm |
最大輸入扭矩 T1max/Nm |
徑向力Fmax/N |
最大輸入轉速n1max/rpm |
速比 i |
RI/RF25 |
4500 |
270 |
51000 |
4000 |
11.4/12.73/14.21/19/21.69/25.45/31.26 |
RI/RF46 |
7500 |
400 |
65000 |
4000 |
11.25/13.44/17.08/20/25.69/30/35/42.5 |
RI/RF66 |
10000 |
400 |
80000 |
4000 |
11.25/14.16/19.62/24.99/29/35/35.25/42.5 |
RSF/RFL/RFD159 |
22000 |
1100 |
170000 |
3500 |
12.65/17/20.21/25.57/29.85/36.29 |
RSF/RFL/RFD255 |
38000 |
1590 |
235000 |
3500 |
19.85/24.8/28.7/33.86/40.5/51.2 |
RX21-10 |
5000 |
250 |
75000 |
3500 |
14.09/15.73/18.89/21.05/23.83/29.47 |
RX21-12 |
5500 |
250 |
75000 |
3500 |
13.78/14.83/16.12/17.72/18.48/19.87 22.40/23.67/26.07/29.84 |
CWD1012 |
2200 |
25000 |
1000 |
6 |
|
CWD2012 |
2200 |
25000 |
3500 |
42.36 |
|
CWD2050.1 |
10000 |
363 |
105000 |
3500 |
15/17.9/22.6/26.4/31.5/38.2/49.5 |
?
型號 |
最大輸出扭矩T2max/Nm |
最大輸入轉速n1max/rpm |
速比 i |
CTD1020 |
2200 |
1000 |
6 |
CTD2051 |
5500 |
3500 |
16.12/22.40/26.07/29.84/34.67/39.95/52.97 |
CTD2100.1 |
10000 |
3500 |
15/17.9/22.6/26.4/31.5/38.2/49.5 |
CTU3150.1 |
18000 |
3500 |
65.7/72.5/81.6/94/112.2/141.2 |
CTU3200.1 |
25000 |
3500 |
67.1/73.4/81.5/92.3/107.5/130.3 |
CTU3300.1 |
35000 |
3500 |
67/73.3/81.4/92.2/107.4/130.1 |
CTU3500.1 |
45000 |
3500 |
87.2/95.3/105.8/119.9/139.5/169 |
CTU3700.1 |
70000 |
3500 |
98.4/107.6/119.5/135.3/157.5/190.7 |
